Energy Control Unit
×
![]()
Description

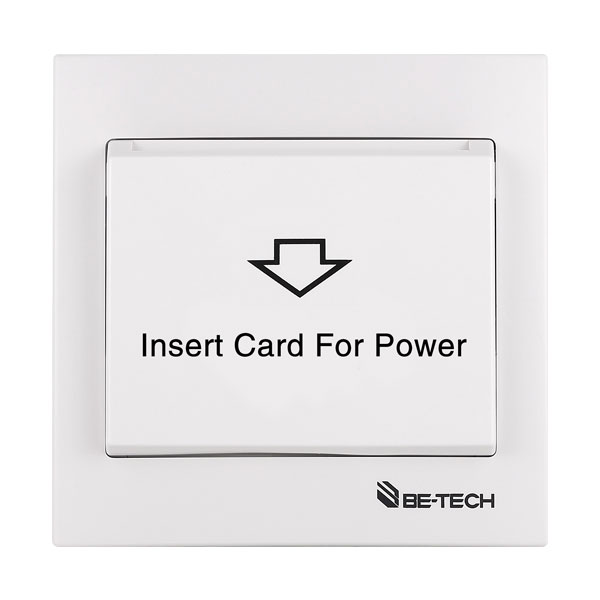

An energy-saving device that cuts power when guests remove their keycard, reducing electricity waste. Blue LEDs provide visibility, and installation is simple and efficient.
Features
-
Cuts power when guest is out
-
LED indicators for visibility
-
Easy to install
-
32A load capacity
Specifications
Description:
Operates only with hotel-specific room number MIFARE RFID keycards
Guest/Staff Keycard Function:
Prevents use of electrical equipment (e.g., air conditioning, TV, heater) unless the correct hotel room keycard is inserted
Rejects non-matching RFID keycards when the guest is not in the room
Voltage:
Energy Saver Unit: 12V AC
Control Box: 110V–220V AC, 50–60 Hz
Power Consumption:
30 mA (standby)
40 mA (active/on)

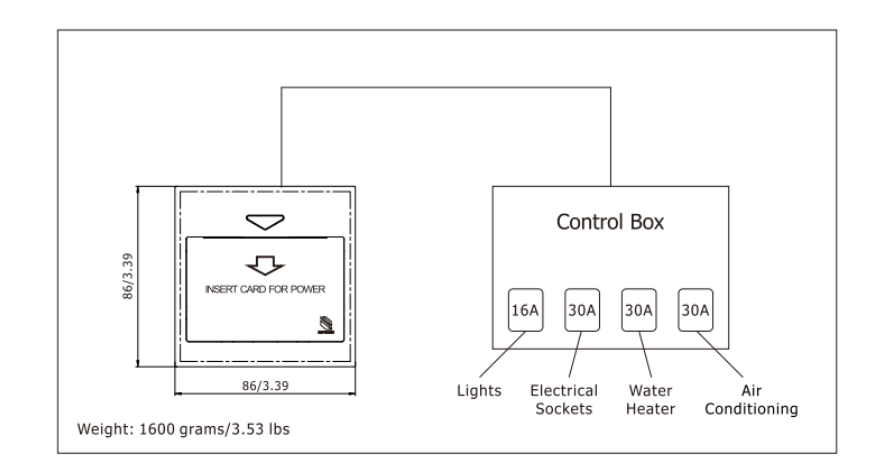

Output Relay:
4 relays with time-delay function
Inductive Load: Max 16A
Resistive Load: 2–4 max, up to 30A
Wall Box:
Made from fireproof material compliant with UL 94 V-0
Must be ordered separately if needed
